Universal programmers+

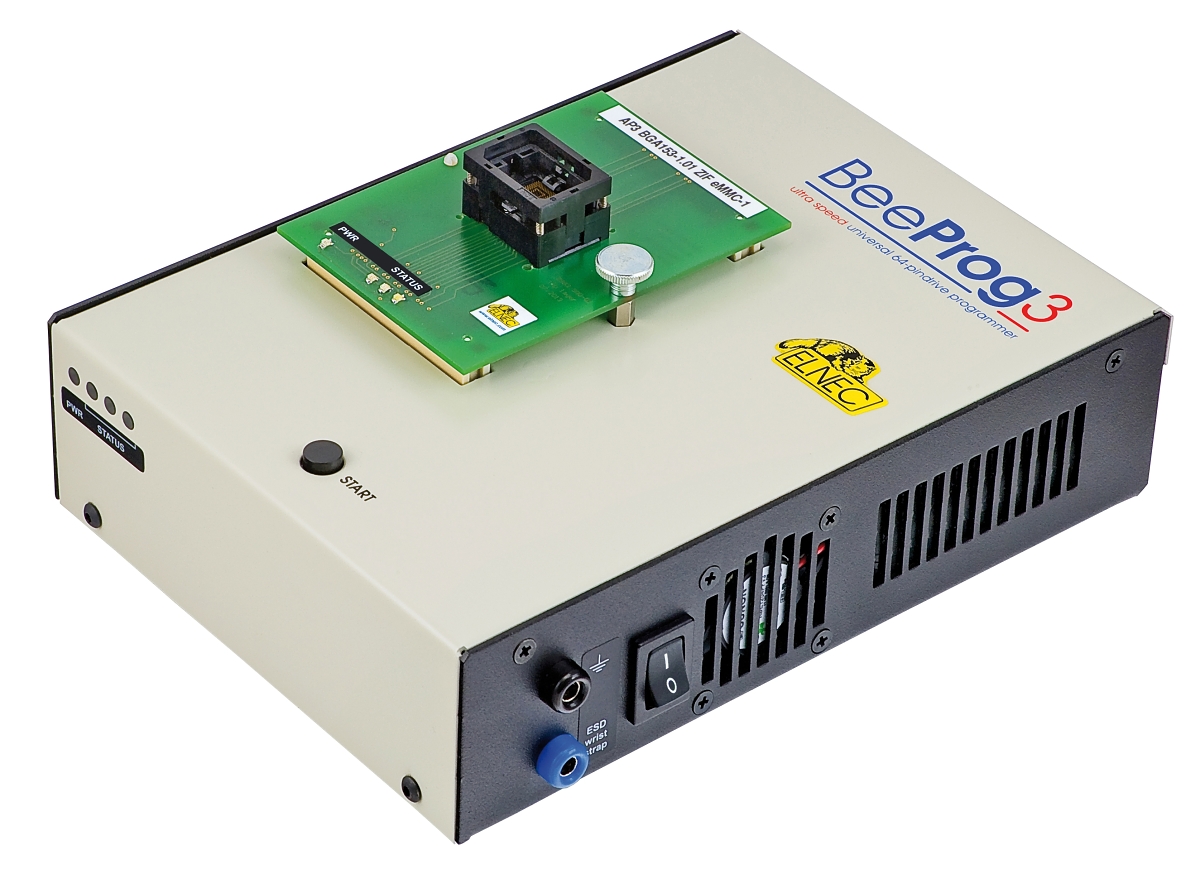

BeeProg3

• ultra-fast USB/LAN interfaced programmer
• 64-pin precise and powerful pin driver
• free lifetime software update
• warranty – 3 years
• Availability in stock: 6 pcs

BeeProg3 (ord.no. 60-0061)

Ultra speed universal 64-pindrive programmer,
design focused on high-capacity memories programming.

Availability in stock: 6 | More images

Price: US $2380.00 [read this!]

the BeeProg3 was designed meticulously with attention to details, quality and reliability

• the programmer perfectly fits for high-demanding desktop programming, as well as for automated programming systems
• based on a state of the art FPGA design, powerful ARM processor and internal SSD, the BeeProg3 is ready to program devices at theoretically possible speeds
• 64-pins rich-features, precise and powerful pindriver provides programming signals for every technology of programmable devices
• logic signals frequency up to 125MHz at 3.3V and 80MHz at 5V
• it supports devices with VCC voltages as low as 0.8V
• ultra fast programming speed, one of the fastest programmers worldwide. Sustainable programming speed greater than 31 MBytes per second
• the 8 GB eMMC NAND Flash could be done in less than 250 sec, if supported memory is fast enough
• it utilizes both universal programming modules, dedicated for IC package type and specialized modules, designed optimized for specific device families
• ESD protection on each pin of the pindriver
• dual connection to the PC: USB (2.0 HighSpeed) and LAN (100 Mbit)
• comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 11(32-bit and 64-bit) running at x86/x64 compatible PC
• unique quick reaction to customer’s needs – software update can be ready within a day from request, by OnDemand software
• Multiprogramming possible by attaching more programmers to one PC
• developed and made in Slovakia
• warranty – 3 years
• approved by CE laboratory to meet CE requirements


BeeProg2

• 134142 supported devices from 458 manufacturers by 3.97 version of SW (10. Oct. 2024)
• extremely fast USB/LPT interfaced programmer
• free life-time software update
• No adapter required for any DIL devices.
• ISP capability
• warranty – 3 years
• Price: US $1190.00
• Availability in stock: 95 pcs

(ord.no. 60-0052)

Extremely fast universal USB/LPT interfaced programmer.
If you’re looking for lower price universal programmer, please take a look at BeeProg2C programmer.

Availability in stock: 100 | Large image

Price: US $1190.00 <[read this!]

Short description:

• 134142 supported devices from 458 manufacturers by 3.97 version of SW (10. Oct. 2024)
• extremely fast programming, one of the fastest programmers in this category.
  Sustainable programming speed greater than 5 MBytes per second.
  Programs 2 GB eMMC NAND Flash in less than 365 sec.
• 48-pins powerful pindrivers, no adapter required for any DIL devices
• ISP connector for in-circuit programming
• dual connection to PC: USB (up to 480 Mbit/s) or parallel (printer) port
• USB 2.0 (high speed, full speed) and 1.1 compatible interface
• alternatively high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface
• comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 11(32-bit and 64-bit*) running at x86/x64 compatible PC
• unique quick reaction to customer’s needs – software update can be ready within a day from request by OnDemand software
• Multiprogramming possible by attaching more programmers to one PC
• made in Slovakia
• warranty – 3 years
• approved by CE laboratory to meet CE requirements


BeeProg2AP

BeeProg2AP (ord.no. 60-0057)

Extremely fast universal programmer – the core for automated programmers and automatic test equipments (ATE).

Availability in stock: 4 | Large image

Price: US $1295.00 [read this!]

Short description:

• industrial version of BeeProg2 programmer for usage in automated programmers and ATE machines
• extremely fast programming, one of the fastest programmers in this category. Programs 64Mbit NOR Flash memory less than 9 seconds and 1Gbit NAND Flash less than 70 sec.
• 48-pins powerful pindrivers for in ZIF programming (off line programming)
• ISP connector for in-circuit programming (on line programming)
• up to 8 programmers can be attached to one control PC to fulfill complicated needs in ATE machines
• comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 11(32-bit and 64-bit) running at x86/x64 compatible PC
• implementation into available 3rd party automated programmers and ATE machines using simple remote control
• unique quick reaction to customer’s needs – software update can be ready within a day from request by OnDemand software
• made in Slovakia
• warranty – 3 years
• approved by CE laboratory to meet CE requirements


BeeProg2C (ord.no. 60-0059)

Extremely fast universal USB interfaced programmer.
Cost effective version of BeeProg2 programmer (differences see below). If you need to program some of the mentioned devices, see BeeProg2 programmer.

Availability in stock: 83 | Large image

Price: US $990.00 [read this!]

Short description:

• 132815 supported devices from 448 manufacturers by 3.97 version of SW (10. Oct. 2024)
• extremely fast programming, one of the fastest programmers in this category.
  Sustainable programming speed greater than 5 MBytes per second.
  Programs 2 GB eMMC NAND Flash in less than 365 sec.
• 48-pins powerful pindrivers, no adapter required for any DIL devices
• ISP connector for in-circuit programming
• connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface
• after upgrade to BeeProg2, also high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface is available
• USB 2.0 (high speed, full speed) and 1.1 compatible interface
• alternatively high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface
• comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 11(32-bit and 64-bit*) running at x86/x64 compatible PC
• unique quick reaction to customer’s needs – software update can be ready within a day from request by OnDemand software
• Multiprogramming possible by attaching more programmers to one PC
• made in Slovakia
• warranty – 3 years
• approved by CE laboratory to meet CE requirements


BeeProg2C (ord.no. 60-0059)

Extremely fast universal USB interfaced programmer.
Cost effective version of BeeProg2 programmer (differences see below). If you need to program some of the mentioned devices, see BeeProg2 programmer.

Availability in stock: 83 | Large image

Price: US $990.00 [read this!]

Short description:

• 132815 supported devices from 448 manufacturers by 3.97 version of SW (10. Oct. 2024)
• extremely fast programming, one of the fastest programmers in this category.
  Sustainable programming speed greater than 5 MBytes per second.
  Programs 2 GB eMMC NAND Flash in less than 365 sec.
• 48-pins powerful pindrivers, no adapter required for any DIL devices
• ISP connector for in-circuit programming
• connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface
• after upgrade to BeeProg2, also high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface is available
• USB 2.0 (high speed, full speed) and 1.1 compatible interface
• alternatively high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface
• comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 11(32-bit and 64-bit*) running at x86/x64 compatible PC
• unique quick reaction to customer’s needs – software update can be ready within a day from request by OnDemand software
• Multiprogramming possible by attaching more programmers to one PC
• made in Slovakia
• warranty – 3 years
• approved by CE laboratory to meet CE requirements


Who are Elnec universal programmers primary designed for?
development community (EMS, industry, universities)
individual users (chip tuning, car service)
small manufacturers
What are Elnec universal programmers designed for?
all kinds of today and tomorrow programmable devices without family-specific module
Why Elnec universal programmers?
fast and reliable products – 3 years warranty
probably best “value for money” solutions on today market
Elnec is only manufacturer granting free life-time software update for universal programmers – New On demand software for 48-pins universal programmers is released every day in many cases
prompt and in most cases free new device request also after warranty period of universal programmers – please see AlgOR (Algorithm On Request) service for details
number of supported devices is one of the highest in industry and increasing every day
one of highest variety of programming adapters (socket converters) in industry allows Elnec universal programmers to be used for programming devices in nearly all possible packages
free technical support (WebForm/e-mail based) – available usually within few hours, at the latest next working day.
number of supported devices is one of the highest in industry and increasing every day
Keep Current service
easy to use from Windows XP to Windows 11, 32-bit and 64-bit based PC controller software, available in 9 different language variations (English, Korean, Chinese, Japanese, German, French, Russian, Portuguese, Slovak)
all Elnec universal programmers are reliably working also under 64 bit operating systems
USB as well as LPT interface allow Elnec 48-pins universal programmers to be used on every PC
all of Elnec universal programmers meets CE requirements
